Raven RP62 Door Finger Guard
Raven RP62 Finger Guard
Protect fingers from becoming trapped in the hinge gap of doors with the Raven RP62 Finger Guard. Designed for commercial, educational, healthcare and public buildings, the RP62 provides an effective safety barrier that helps reduce the risk of finger injuries without affecting normal door operation.

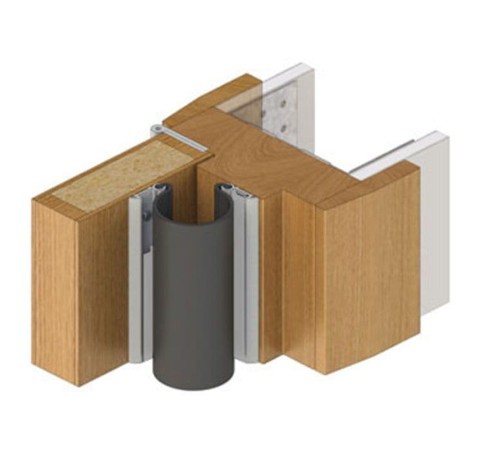

Manufactured from a durable anodised aluminium carrier with a flexible black EPDM rubber insert, the RP62 is fitted to both the door and frame on the hinge side. It is suitable for butt-hinged and centre pivot doors with opening angles up to 180°, and can also be used to protect the hinge-barrel side of the door where dimensions allow.
For optimum protection, the finger guard should be installed over the full height of the door. Longer openings can be accommodated by neatly butt-jointing multiple lengths together. Independently tested to BS 8613:2017 Class 1, the RP62 is a reliable choice for environments where door safety is a priority.
Key Features
- Prevents fingers becoming trapped on the hinge side of doors
- Ideal for schools, nurseries, hospitals, care homes, offices and public buildings
- Suitable for butt-hinged and centre pivot doors
- Can also protect the hinge-barrel side of the door where suitable
- Durable anodised aluminium carrier with black EPDM rubber seal
- Tested to BS 8613:2017 Class 1 finger protection standard
- Supplied with pre-slotted fixing holes, screws and cover strips
- Recommended for full-height installation for maximum protection
- Standard length: 2100mm
Door finger guards are typically installed on doors for use in commercial buildings, residential buildings, schools, hospitals and other public buildings to prevent accidents by offering safety from fingers getting trapped.
Yes, door finger guards are designed to be installed and work on most interior doors, but specific models may be needed for fire doors and heavy duty commercial doors.
Yes, door finger guards are easy to install and should be fitted by a professional to ensure proper functionality.
No, door finger guards are designed not to affect the normal door operation. The finger guards provide a protective layer added to prevent accidents and injuries from people getting their fingers trapped.
